Bones and Skeletal System
Bone Tissue:

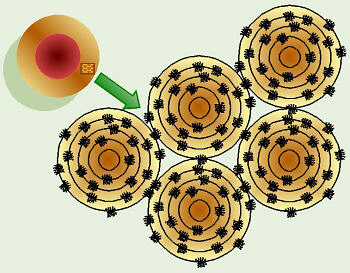

Bone Cross-Section
Microscopic View of Bone Cross-Section
Many people are familiar with a hambone as a cross-section of a typical bone.
The center of the bone is filled with marrow, and this is surrounded
by the hardened bone tissue itself. If you would examine a bit of this hard
bone tissue under a microscope, it would look like the picture to the right.
In bone, the extracellular matrix is composed of collagen with
Ca3(PO4)2 deposited in it. Note that
since vitamin C is needed for collagen synthesis, getting a little extra
while a broken bone is healing would probably be a good idea. Bone tissue
is composed of repeating, circular units called Haversian systems.
Within each Haversian system, there is a central canal where blood vessels
and nerves can be found. This is surrounded by concentric layers of the
matrix material called
lamellae.
The darkly-stained spots are spaces called
lacunae
which contain the
osteocytes.
Bones of the Human Skeleton:

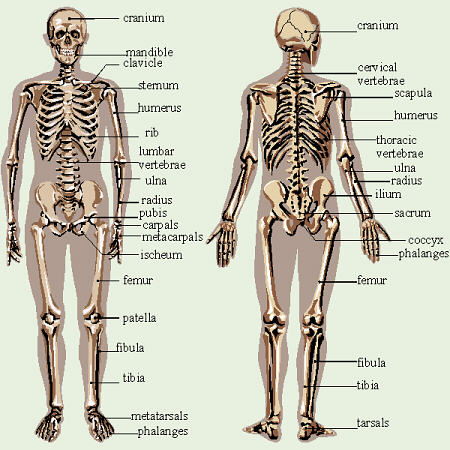

Here’s a skeleton
(edited from Corel Presentations 8)
The main bones in the human skeleton include:
- cranium
- the bones of the skull surrounding the brain, not including the face
bones; the bone just above/in front of the ear is the temporal
bone
- mandible
- the jaw bone, so the hinge of the jaw is the temporo-mandibular
joint, and problems with malfunctioning of this joint are known as
TMJ
- vertebrae
- bones which make up the spine, which include:
- cervical vertebrae
- the vertebrae in the neck region
- thoracic vertebrae
- the vertebrae with ribs attached
- lumbar vertebrae
- the vertebrae in the lower back
- sacrum
- five fused vertebrae which are joined to the pelvis
- coccyx
- four fused vertebrae which comprise the tailbone
- ribs
- bones protecting the chest cavity
(we all have twelve pairs)
- sternum
- the breastbone
- clavicle
- the collar bone
- scapula
- the shoulder blade
- humerus
- the top of the arm
- ulna
- the little finger side of the lower arm which also forms the elbow
- radius
- the thumb side of the lower arm; the Radius
Rotates around
- carpals
- the wrist bones
— Watch out for
sound-alike words (Thanks to a very observant student for catching
this!): “carpal” refers to a wrist bone, while
“carpel” refers to a female flower part.
- metacarpals
- the palm of the hand
- phalanges
- the fingers and toes
- (os) coxa
-

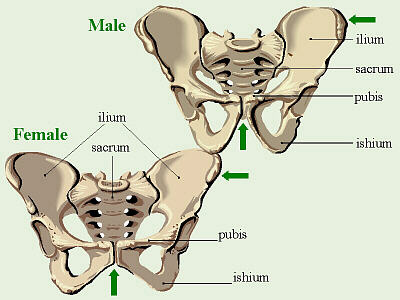

Hip Bones (clipart edited from Corel Presentations 8)
the hip bones, which include:
- ilium
- the big bone on top that we think of as the hip bone
— Watch
out for sound-alike words: “ilium” refers to a
hip bone, while “ileum” refers to the last
section of the small intestine.
- ischium
- the bones on which you sit
- pubis
- the lower front hip bone
- ways to tell male pelvis from female:
-
- spread of ilium:
female more flared and cradle-like with anterior iliac
spines farther apart vs. more straight “up-and-down” in
male
- shape of hole in
ischium: smaller and triangular in female vs. larger and
rounded in male
- angle across pubic
symphysis = pubic arch: less than 90° (acute angle) and
more sharply angled in male, greater than 90° (obtuse
angle) and more rounded in female
- inner diameter and
distance between ischia larger in female — big enough for
head of baby to pass through
- femur
- the thigh bone
- patella
- the kneecap
- tibia
- the thick, inside (big-toe side) shinbone
The root word “tibia” means “flute.” There is a Celtic song “The Two
(Twa) Sisters” or “The Wind and the Rain” about a woman who was drowned
by a jealous sister. Most versions of this song tell of a minstrel
who made her hair and breastbone into a harp which sang of her death.
However, I have heard a version (I’m having trouble finding out who
recorded it — does anyone out there have any info?) in which, when
her bones washed ashore, the man made a flute out of her tibia, which
then sang the song of her murder.
- fibula
- the thin, outer (little-toe side) shinbone
- tarsals
- the heel bones
- metatarsals
- the arch of the foot, the sole
- phalanges
- the fingers and toes
